Samsung Galaxy A70 Screen Replacement

Send this link via e-mail


thumb image 1
thumb image 2
thumb image 3
thumb image 4

Step 1 - Warm Up The Glue

  • Switch off your Samsung Galaxy A70.

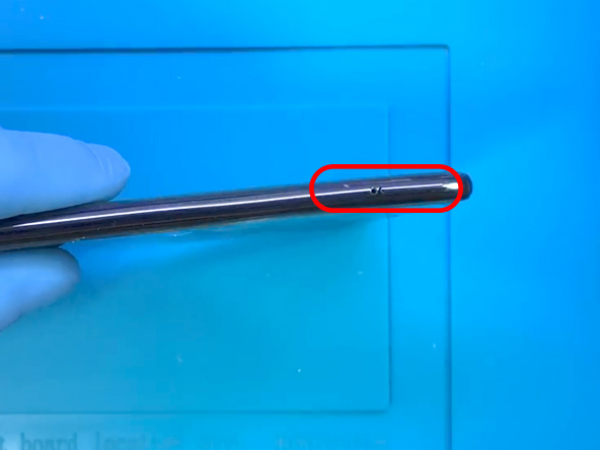

  • Eject and remove the tray, you can use a simple paper clip if you do not have the tool.

  • Apply heat along the edges at the back of the phone to soften the adhesive which holds the back glass.

  • Use a heat gun or a hair dryer for a minute or so at max. 110°C.

  • You may need to repeat the process because the glue hardens quickly.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

Step 2 - Removing The Back Cover
Back to top

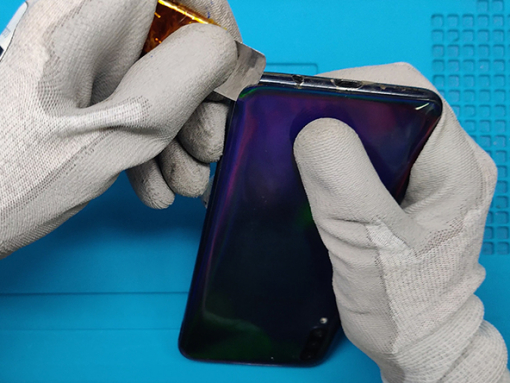

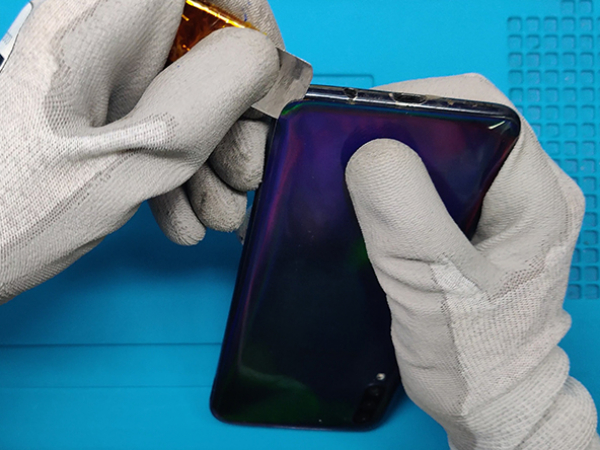

  • Starting from the bottom, insert the thin metal opening tool between the metal frame and the back cover of the phone.

  • You can go all around the edges to cut through the glue.

  • Remove the back cover.

  • The back cover of this device is plastic so there is a minimal chance of braking it.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10
thumb image 11

Step 3 - Midframe
Back to top

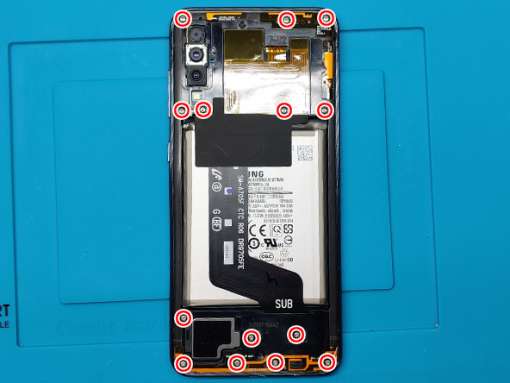

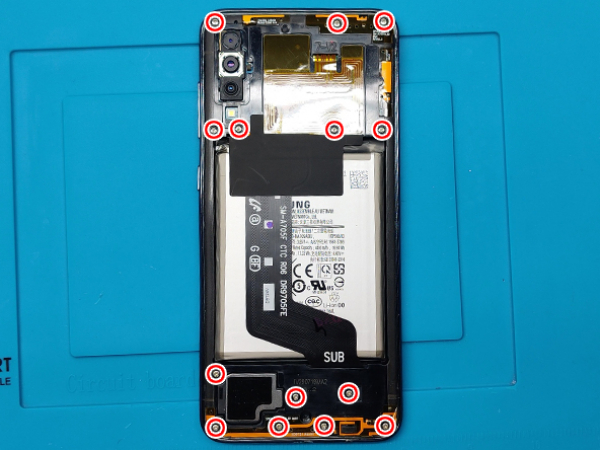

  • Remove a total of fourteen Phillips #00 screws that secure the phone's midframe.

  • 7 screws from the top part and 7 screws from the bottom.

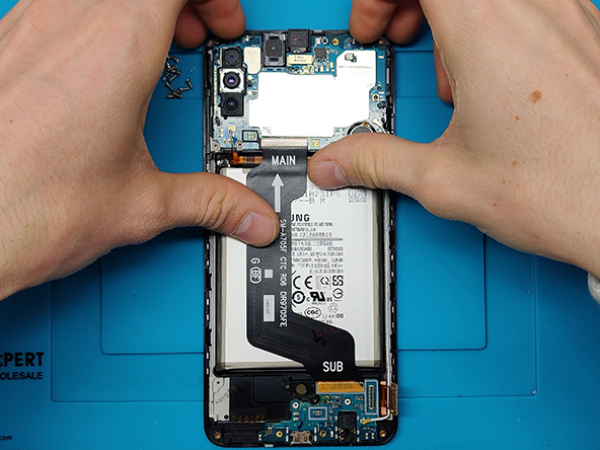

  • Plastic clips hold the midframe in place.

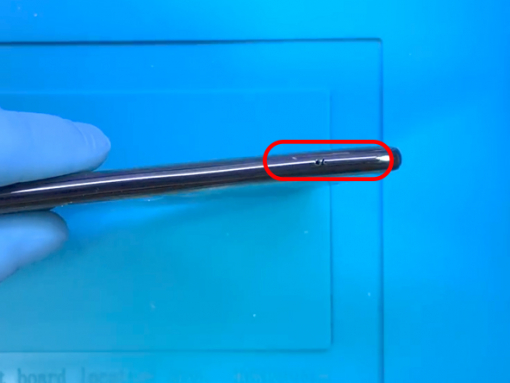

  • Insert the thin opening tool or a plastick pick between the display and the midframe at the bottom of your phone.

  • Slide the tool along the bottom edge to release the clips.

  • Continue sliding the tool along the left edge of the phone to release the clips.

  • Make sure you free all the clips securing the midframe.

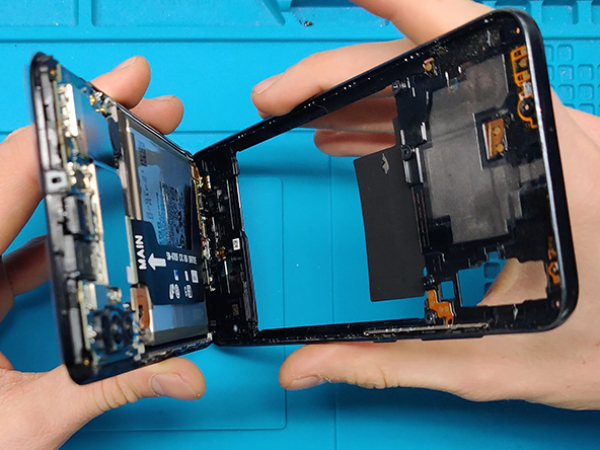

  • Separate the midframe from the phone.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8

Step 4 - Disconnect The Battery And The LCD
Back to top

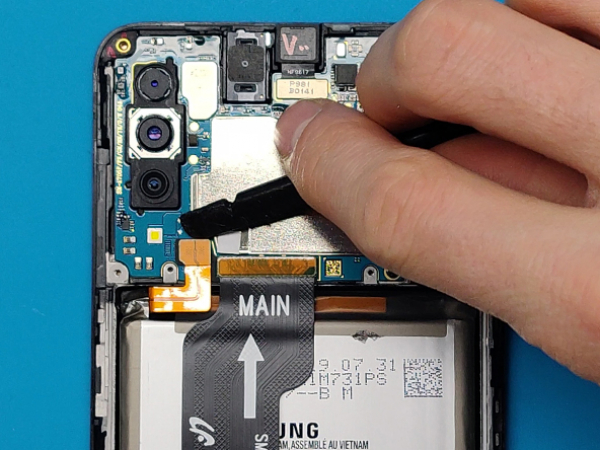

  • Use the flat end of a spudger for prying the battery connector.

  • Remove the single screw that secures the motherboard, near the vibration motor.

  • Remove two screws from the bottom which secure the fingerprint sensor.

  • Disconnect and remove the fingerprint sensor.

  • Disconnect the display flex cable.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

Step 5 - Removing The Parts
Back to top

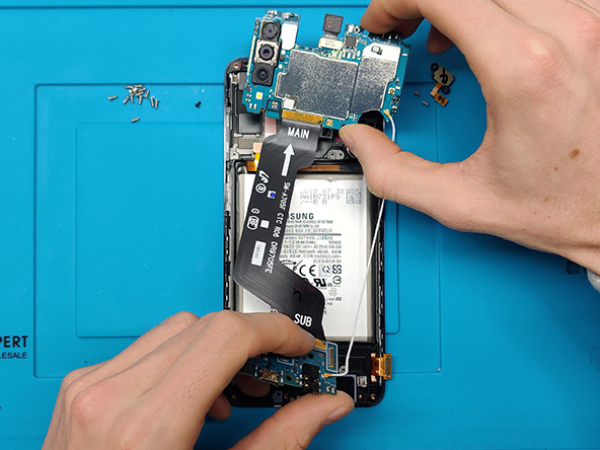

  • You can now remove the MAIN board (motherboard) and SUB board (lower board).

  • Pay attention to the thin antenna cable and flex cables that connect the MAIN and the SUB board.

  • The SUB board is secured with some glue so pull it up carefully.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10
thumb image 11

Step 6 - Transferring The Battery And The Speaker I
Back to top

  • Comparing the new and the old LCD assembly we found out that we have to transfer the speaker, the vibration motor and the battery.

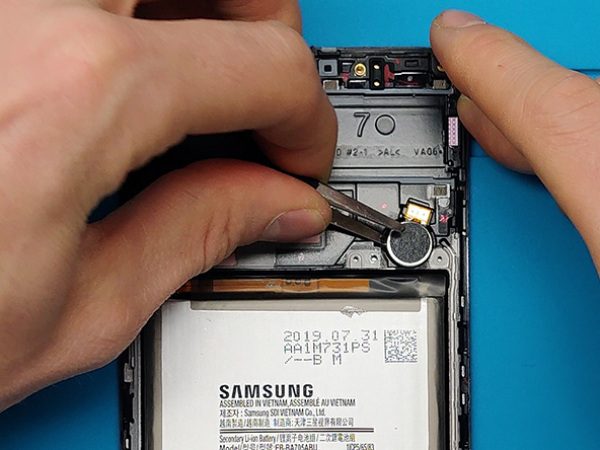

  • First two come off pretty straight forward, just use tweezers to pry the speaker and the vibra motor out of the old LCD assembly.

  • For the battery, use isopropyl alchohol to dissolve the glue under the battery.

  • Samsung is pretty generous with the glue so you may need to heat the device once again.

  • Carefully remove the battery and avoid using sharp tools so you don't puncture the battery.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10
thumb image 11
thumb image 12
thumb image 13

Step 7 - Transferring The Battery And The Speaker II
Back to top

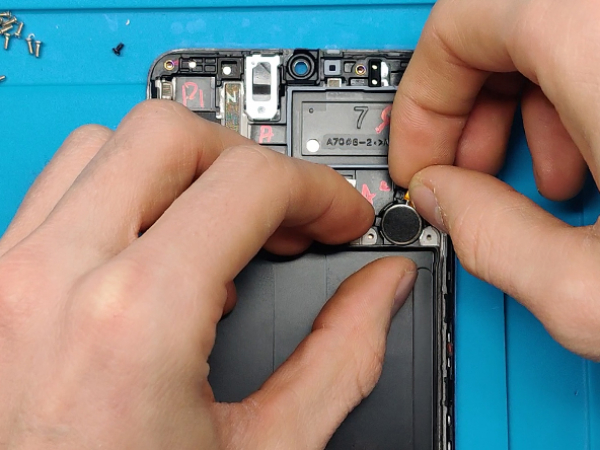

  • Install the speaker and the vibra motor into the new LCD assembly.

  • Clean up any remaining adhesive from the battery

  • Then, set two pieces of double-sided self-adhesive tape to secure the battery.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

Step 8 - Installing The Main And The Sub Board
Back to top

  • Install the MAIN and the SUB board in the new LCD assembly, the same way you removed them from the old one.

  • Yet again pay attention to the fragile cables and connectors.

  • Tuck in the antenna cable.

  • Secure the fingerprintscanner with the two screws you previously removed.

  • Secure the motherboard with the screw you've removed earlier.

  • Connect the LCD flex to the SUB board connector.

  • Connect the battery cable to the MAIN board connector.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7

Step 9 - Midframe And Back Cover
Back to top

  • Install the midframe and secure it with 14 Phillips #00 screws.

  • The adhesive tape on the back cover we removed is in good shape, so we will not use other adhesive.

  • If your situation is different you can use doublesided tape.

  • Place the back cover on top and press with your fingers along the edges.

  • Apply strong, steady pressure to your phone for several minutes.

  • A stack of heavy books on top of the phone can help the adhesive form a good bond.

  • Turn on the device and enjoy.
