iPhone XR Screen Replacement

Send this link via e-mail


Step 1 - Before You Start

  • Before you start with the repair, the battery should be discharged below 25%.

  • If a Li-Ion battery is charged, it can catch fire or explode if punctured.

  • Caution:

  • If the battery is swollen, take adequate measures and precautions.

  • Do not heat your phone. You can use isopropyl alcohol around the edges of the back cover to weaken the adhesive

  • Wear eye and hand protection when working with swollen batteries.

thumb image 1
thumb image 2
thumb image 3
thumb image 4

Step 2 - Pentalobe Screws
Back to top

  • Turn your iPhone off.

  • Remove two 6.7mm pentalobe screws found at the bottom of your iPhone.

  • Note:

  • Opening the phone's display will endanger its waterproof features.

  • Make sure you have prepared the replacement seals before you continue with the repair.

  • Otherwise, avoid exposure to liquid if you reassemble your iPhone and not replace the seals.

Step 3 - Taping Over The Display
Back to top

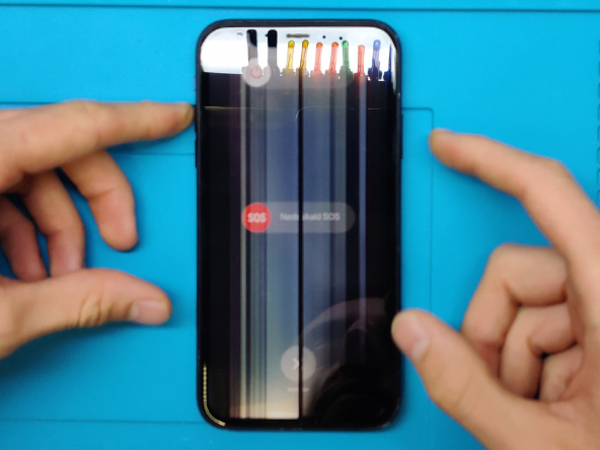

  • If the glass of display is cracked, prevent further tear by taping the glass over it.

  • Stick overlapping strips of transparent packing tape over the entire iPhone's display.

  • This keeps glass shards together and provide the integral structure while you pry and lift the display.

  • Note:

  • If your iPhone's display glass is not shattered, you can skip the entire Step 3

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10

Step 4 - Opening Procedure
Back to top

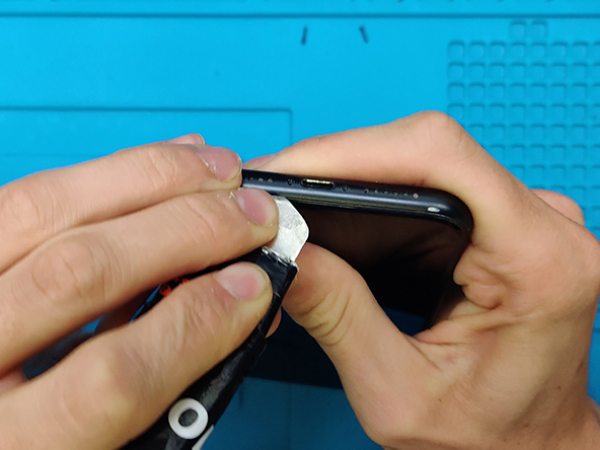

  • Slide the spudger into the edges of the iPhone starting from the bottom.

  • Increase the gap between the display and back case by twisting the spurger.

  • Prying along the top edge of the phone may cause damage of plastic clips which secure the display.

  • Pull the display assembly slightly away from the top edge of the phone to disengage the clips holding it to the rear case.

  • Swing the display up from the left to open the device, like a book's back cover.

  • It is still not the time to completely detach the display, since a few fragile ribbon cables connect it to the iPhone's mother board.

  • Attention:

  • Lifting the display higher than 10º can damage the ribbon cables at the phone's right edge which connect the display to the logic board.

Step 5 - Disconnect The Battery & LCD Display I
Back to top

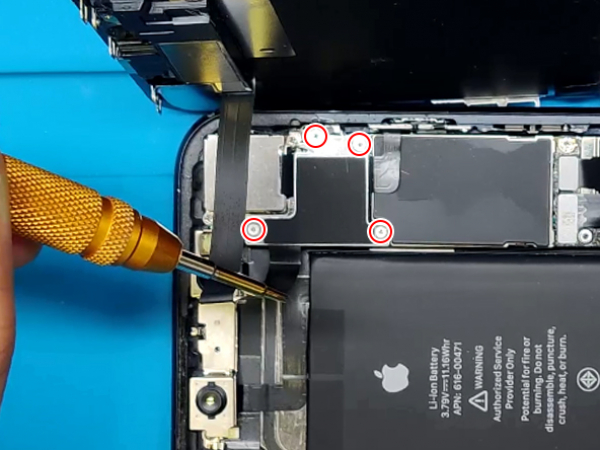

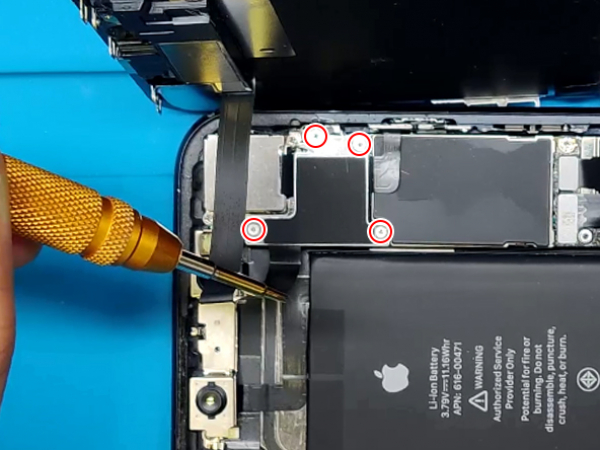

  • Remove five screws which secure the connector bracket of the logic board.

  • 3x 1.2 mm Y000

  • 1x 1.3 mm Phillips #000

  • 1x 1.5 mm Phillips #000

  • Tip:

  • Keep track of each screw so you can put them back where they came from to avoid damaging your iPhone.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

Step 6 - Disconnect The Battery & LCD Display II
Back to top

  • Remove the two connector brackets gently.

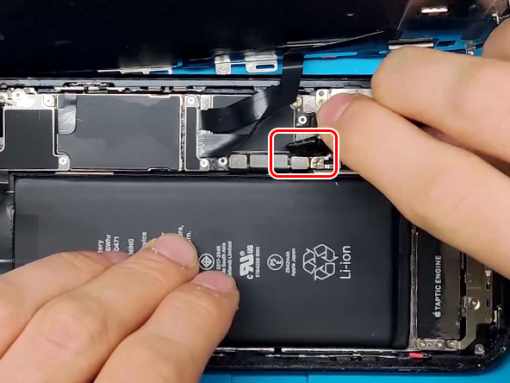

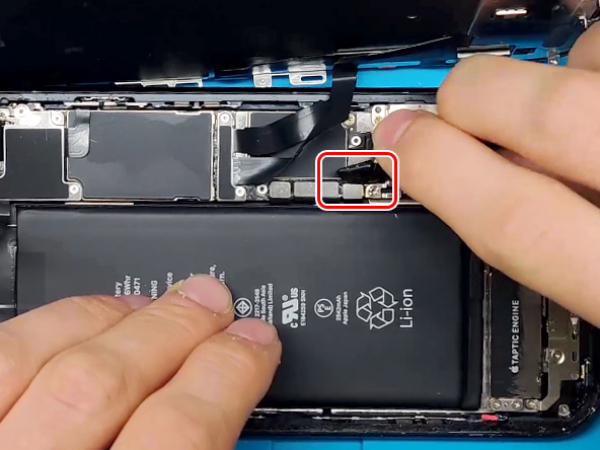

  • The spudger's point can help you lift the battery connector from its socket.

  • Bending the connector cable slightly upwards prevents the contaction with the socket and power in the phone.

  • Use the point of a spudger to pry the digitizer cable connector up.

  • Caution:

  • When reconnecting these cables, press down one end of the connector until it clicks back into place, then repeat on the opposite end.

  • Avoid pressing down in the middle. A misaligned connector can cause the pins to bend.

  • Note:

  • If the screen is blank, white lines appear or the display is partially / completely irresponsive to touch after reassemby, disconnect and carefully reconnect these two cables back into the right place.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

Step 7 - Disconnect The Battery & LCD Display IIII
Back to top

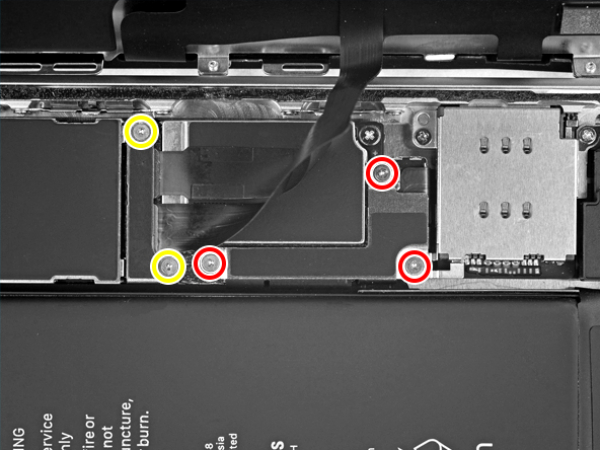

  • Remove the five screws of the the logic board connector bracket:

  • One 1.3 mm Phillips #000 screw

  • One 1.5 mm Phillips #000 screw

  • Three 1.2 mm Y000 screws

  • Remove the bracket

  • Pry the sensor assembly connector at the front out of its socket using the tip of a spudger.

  • The display should now be removed.

thumb image 1
thumb image 2
thumb image 3

Step 8 - Sensor Assembly & The Earpiece I
Back to top

  • Remove the four screws which secure the sensor assembly & speaker to the back of the display:

  • 2x 1.6 mm Phillips screws

  • 1x 2.3 mm Phillips screw

  • 1x 1.2 mm Y000 screw

  • Use a spudger to pry carefully under the upper edge of the assembly, and flip it - down and away from the display's edge.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

Step 9 - Sensor Assembly & The Earpiece II
Back to top

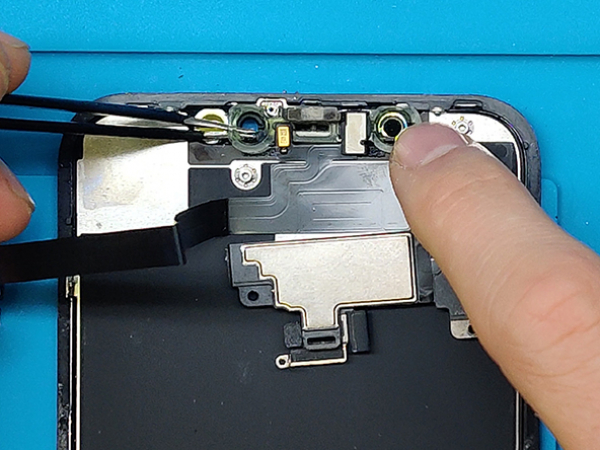

  • Slide an opening pick or tweezers left to right under the proximity sensor and flood illuminator module.

  • Slightly wiggle and lift to remove the module from its cavity in the front panel.

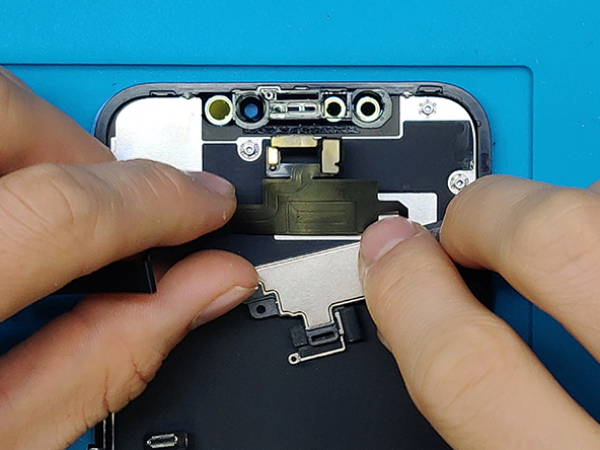

  • Remove the earpiece speaker and front sensor assembly.

  • Note:

  • If the ambient sensor came out with the white diffuser strip, separate it from the strip with a blade or pry tool.

  • Caution:

  • The ambient sensor is connected with the rest of the sensor assembly with a thin flex cable. Do not damage this cable.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9

Step 10 - Metal Shield
Back to top

  • Note:

  • The new LCD we are using for this repair comes without the shield. You have to transfer it from the old one.

  • On the back of the display there is a metal shield.

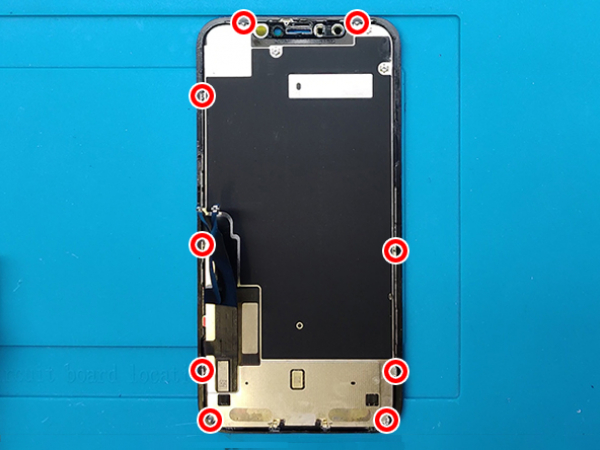

  • Remove 9 screws in total from the LCD clips.

  • The side flex cable is adhered to the metal shield.

  • You will have to tear the flex cable away from the shield.

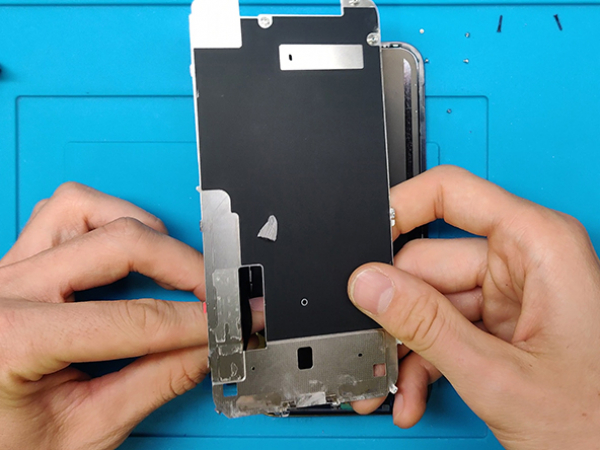

  • Now lift the shield from the top and pull and wiggle slightly so it unclips from the LCD panel.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

Step 11 - New LCD I
Back to top

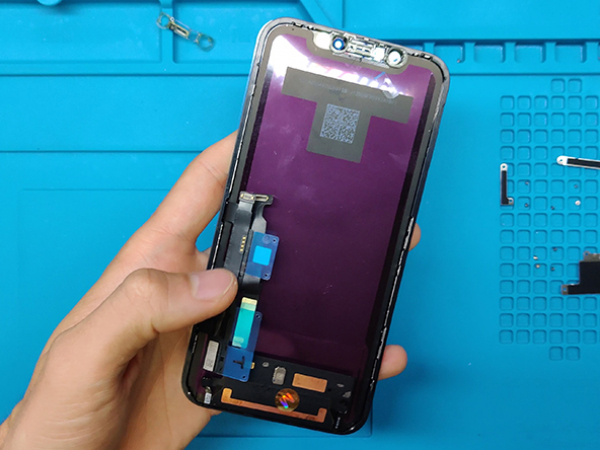

  • There is a pull tab on the bottom left side at the back of the new LCD.

  • Gently press the connectors with your fingers like shown in the photos.

  • Pull the tab to remove the adhesive strip.

  • Now remove the protective film from the back of the display.

  • Slide the bottom flex cable throug the opening in the metal shield.

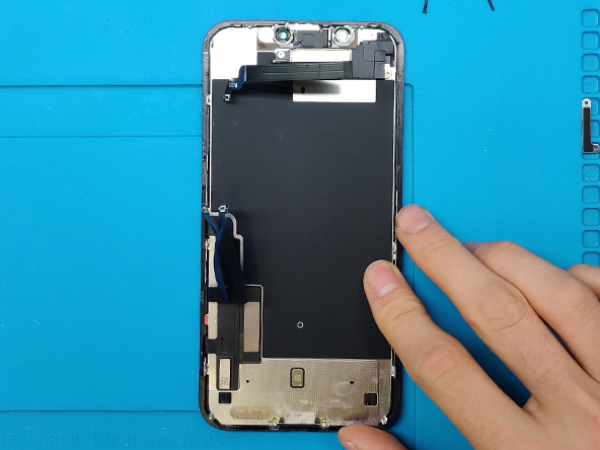

  • Flip over the side flex cables away from the LCD.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8

Step 12 - New LCD II
Back to top

  • Now install the metal shield starting with the bottom clips.

  • Make sure everything is aligned.

  • Remove the protective foil from the side flex to uncover the glue.

  • Now adhere the cable to the metal shield.

  • Install the 9 screws you removed from the old LCD and secure the shield to the new LCD.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6
thumb image 7
thumb image 8
thumb image 9
thumb image 10
thumb image 11
thumb image 12
thumb image 13
thumb image 14

Step 13 - Now In Reverse
Back to top

  • From this point you can reverse steps 9 to 1.

  • Install the sensor assembly and the earpiece.

  • Reconnect all the sensor cable connectors ending with the battery.

  • At this point you can test the new screen.

  • If everything works fine, finish the reassembly.
