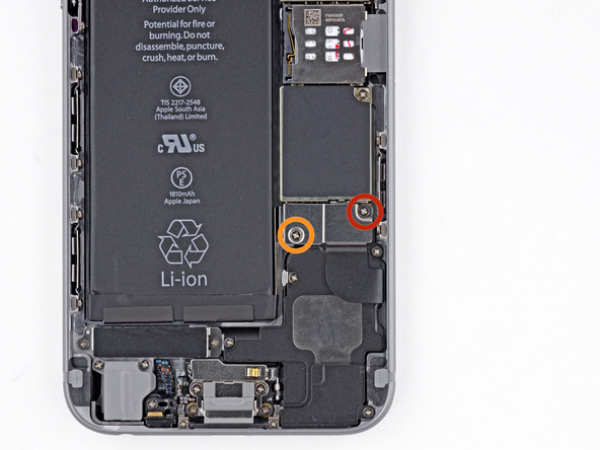

Step 1 - Battery Connector

  • There are two Phillips #00 screws holding the battery connector bracket. You need to remove them.

  • One 2.2mm screw

  • One 3.2mm screw

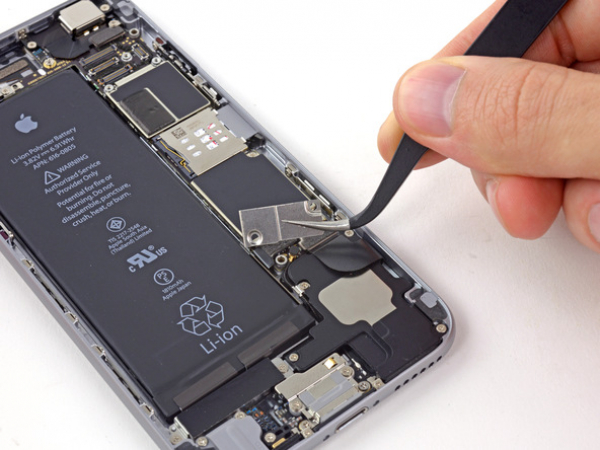

Step 2

  • Separate the metal battery connector bracket from the iPhone.

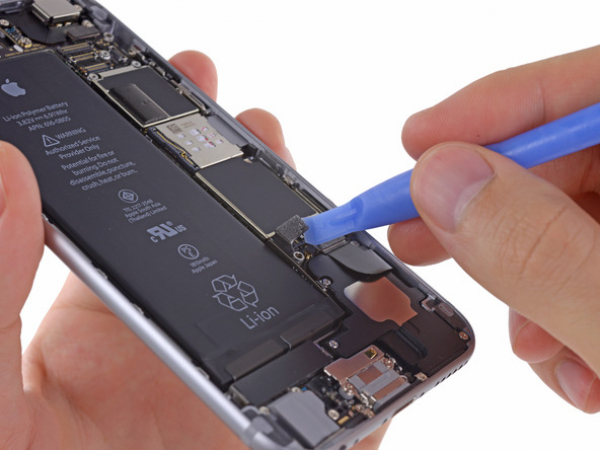

Step 3

  • Gently pry up on the battery connector, and lift it out of its socket on the logic board. Use a plastic opening tool to do this.

  • Make sure to pry up only the battery connector, and not the socket on the logic board. If you pry up on the socket, you may break the connector.
