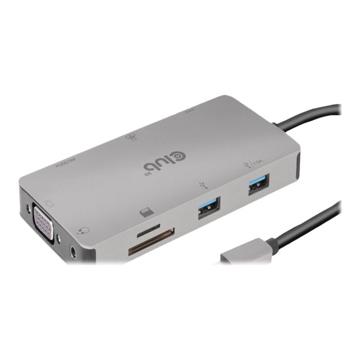

Club 3D USB Gen1 Type-C 9-in-1 Hub Dockingstation
The Club 3D CSV-1594 USB Gen1 Type-C 9-in-1 hub with HDMI, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5 Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100 W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP 1.2 Alt mode supported USB Gen1 Type-C hosts.
Product Type: Docking station
Width: 12.5 cm
Depth: 5.9 cm
Height: 1.4 cm
Max Resolution Details: 4K - 30 Hz (HDMI only), 1920 x 1080 - 60 Hz (VGA only)
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion Slots: 1 (total) / 1 (free) x SDXC UHS-I Memory Card, 1 (total) / 1 (free) x microSDXC UHS-I
Interfaces: 1 x USB-C with Power Delivery - 24 pin USB-C, 1 x SuperSpeed USB 3.0 (powered) - 9 pin USB Type A, 1 x audio / video - HDMI - 19 pin HDMI Type A, 1 x network - 10Base-T/100Base-TX/1000Base-TX - RJ-45, 1 x display / video - VGA - 15 pin HD D-Sub (HD-15), 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm
Cables Included: 1 x USB-C cable - integrated - 15 cm
Features: Overcurrent protection, overvoltage protection, short circuit protection, DisplayPort Alt Mode, 100W power delivery, SST (single-stream transport)
Compliant Standards: HDCP 1.4
Service & Support: Limited warranty - 2 years
EAN: 8719214472177
